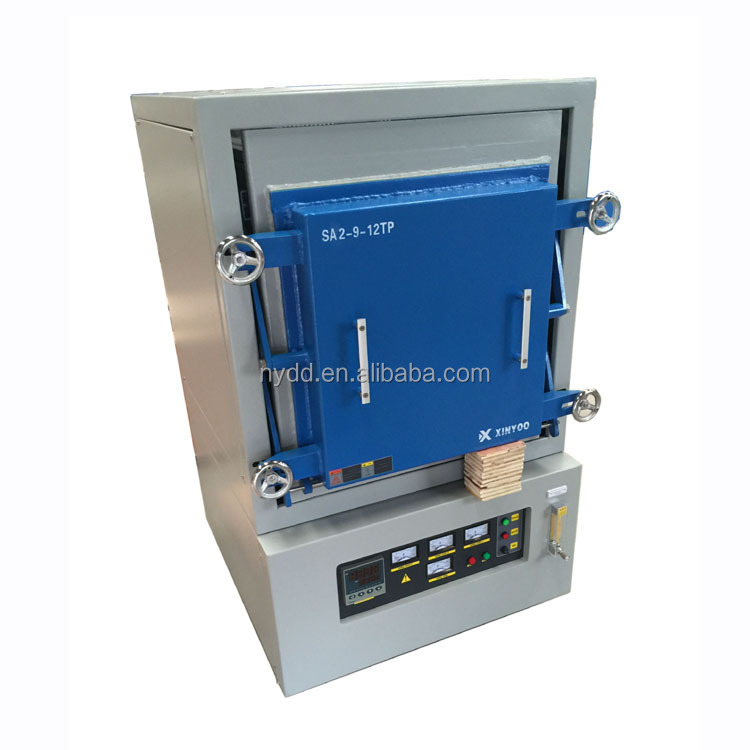

Box atmosphere SA2-2-12TP furnace can protect materials from oxidation and decarburization with following Nitrogen,Argon and other Inert gas, It consists of high quality alumina fiber brick and Fe-Cr-Al-Mo wire heating elements, and temperature is controlled by high precision SCR ( Silicon Controlled Rectifier)digital controller with accuracy ±1℃ and 30 segments programmable
up to 1500.C.It's an ideal for sintering, reducing with inert-atmosphere in labs of university ,Research Institution and industrial company.
1200 Degree Nitrogen controlled atmosphere furnace details specification:
| Product model | SA2-2-12TP |
| Working voltage and frequency | AC220V 50/60HZ |
| Furnace internal size (deep X width X height) | 200 x150 x150mm |
| Rated power | ≤2kw |
| Heating rate | ≤20℃/min |
| Product features | Cool can rise quickly, furnace temperature field is balanced. Stable temperature control, simple operation, low energy consumption |
| Heating element | Fe-Cr-Al-Mo resistance wire |
| Working Temperature | 1100℃ |
| Maximum Temperature | 1200℃ |
| Temperature control type | 30 period of intelligent process control |
| Max. vacuum & Atmosphere | .-0.1MPa, Nitrogen, inert gas atmosphere available. |
| Temperature Accuracy | ±1℃ |
| Temperature control table | 518P intelligent temperature controller |
| The furnace shell | Double air cooling structure |
| Furnace chamber | Type 1200 imported polycrystalline alumina fiber furnace, reasonable design, durable, heat preservation performance is good, saving energy |
| Temperature measuring element | K Type double platinum rhodium thermocouple |
| Main assembly | High temperature gloves, the crucible tongs, thermocouple, corundum crucible, Door block |
| Regular furnace size | 100x100x100mm 200x150x150mm 300x200x200mm 400x300x300mm |
Shipping way : By Courier / By sea / By Air /By Train Optional, depend on clients' demad of time and cost.
Shipping terms: Support EXW /FOB/C&F /CIF/ CPT/CIP /DDU /DDP terms...
Even for some countires with high taxes and some Remote areas, we can ship goods to your Door address and including taxes.
You May need other Atmosphere gas furnaces in the following:
| 1200.C laboratory atmosphere oven | 1400.C vacuum atmosphere furnace | 1700.C Dental argon atmosphere furnace | 1750.C Atmosphere gas furnace |
Nanyang Dadi Electric Equipment Co., Ltd is a professional Heat treatment furnace manufacturer with more than 10 years experiences.
Mainly Electric furnaces including :
Muffle furnace | Atmosphere furnace | Tube furnace |
Dental sintering furnace | Vacuum furnace | Crucible furnace |
Bottom loading furnace | Car bottom furnace | Etc. |
1. Q: Are you muffle furnace manufacturer?
A: Yes, we are professional muffle furnace manufacturer of China.
2. Q:What kind terms of payment can be accepted?
A: L/C, T/T, Western Union, Paypal, Trade Assurance, etc
3. Q: Can I ask for customized furnace?
A: Yes, customized furnace is accepted.
4. Q: What about the delivery time?
A: Within 15 days after receiving your payment or based on order quantity and production schedule.
5. Q: What about the guarantee period?
A: The guarantee period is 12 months.
6. Q: What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
